I. Function Introduction

It can receive BDS third-generation /GPS signals to achieve high-precision positioning and timing.

2. It has the function of automatic and manual switching between BDS and GPS modes. When both BDS and GPS signals are interrupted simultaneously, it can automatically switch to the timekeeping mode.

3. The time code should adopt B(DC) code, and at the same time output a customized format serial code.

4. Support RTC real-time clock and output information according to RTC time when BD/GPS is not tamed during cold start.

5. Support local time zone setting, outputting UTC or local time;

6. It can provide NTP/SNTP network time synchronization services and support terminal time synchronization functions of mainstream operating systems.

7. Support remote query of working status and configuration of working parameters.

8. Keep the last parameter Settings when starting up.

9. Supports NTP/SNTP services, and the IP address and port of the monitoring service can be configured.

10. It has the functions of self-starting upon power-on and self-checking upon startup.

Ii. Equipment Structure

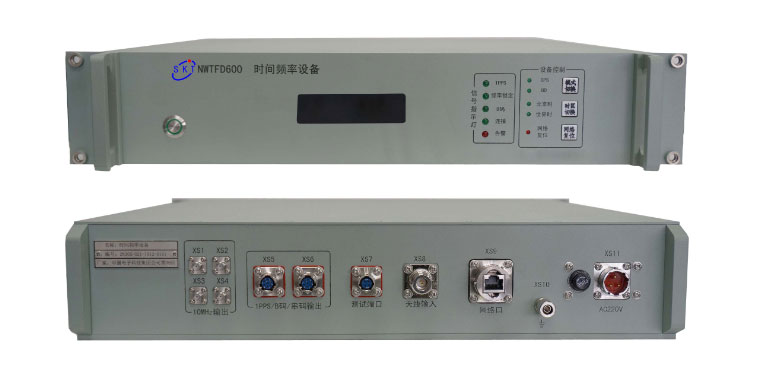

Equipment size: 19-inch 2U standard rack-mounted chassis (customizable according to system structure requirements);

Net weight of the product: ≤15kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
